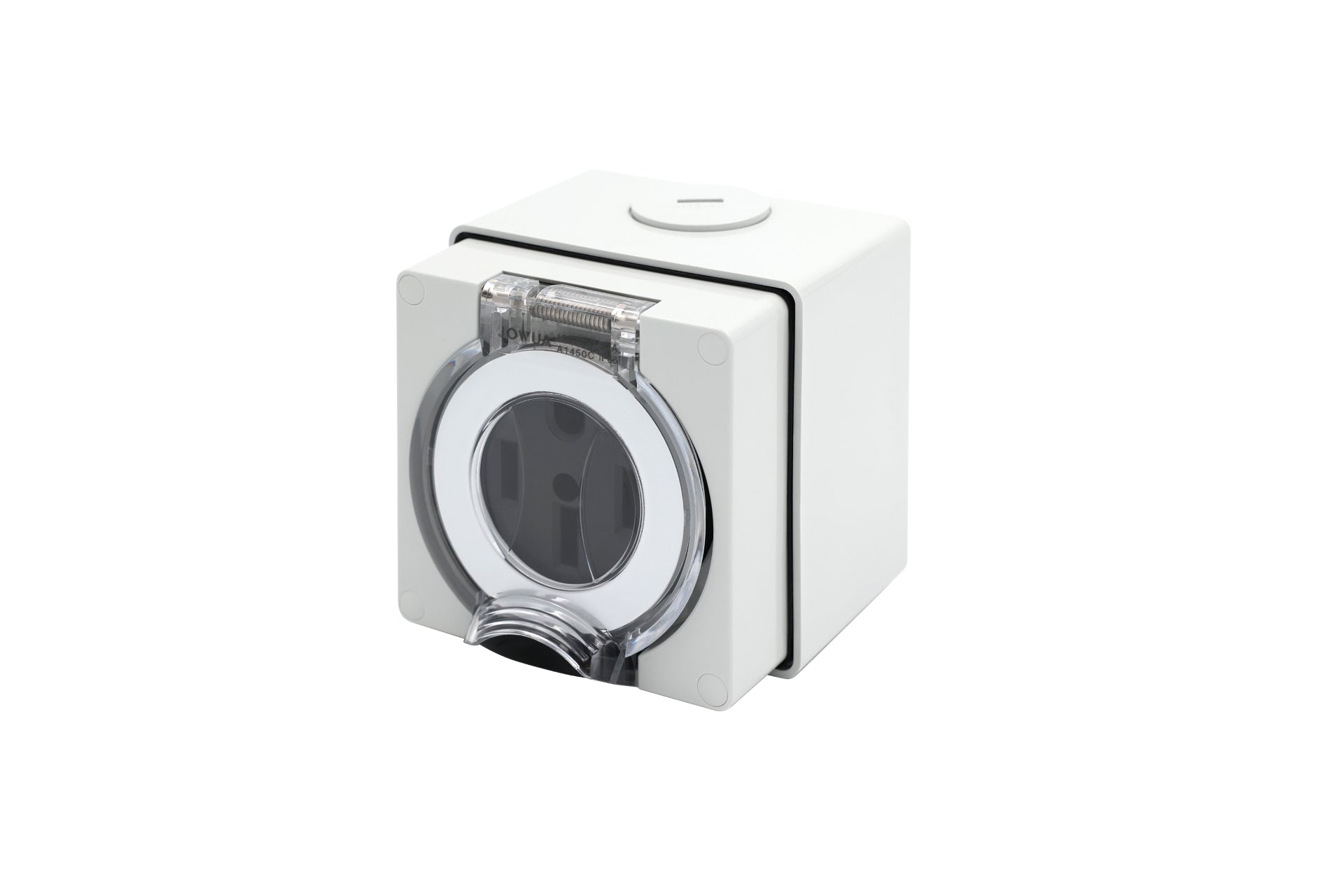

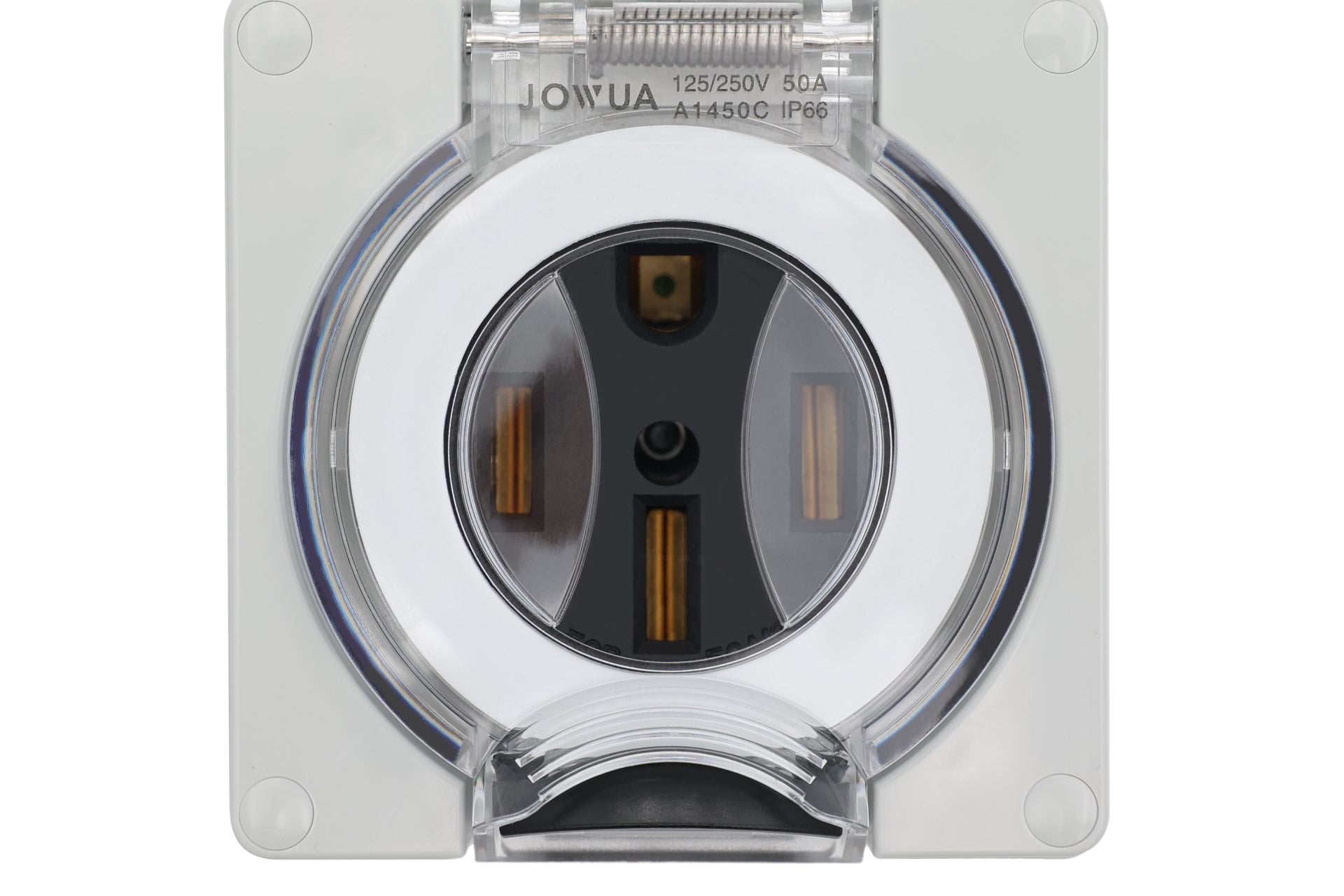

NEMA 14-50 防水電源アウトレットボックス
NEMA 14-50
NEMA(全米電気製造業者協会)の基準を満たすように作られたこのアウトレットボックスは、NEMA 14-50Rコンセントを収容するために特別に設定されています。
最大12000Wの出力
240V / 50Aを必要とするアプリケーションに高電力の接続を提供するように設計されています。これにより、電気自動車、RV、その他の重機器の電源として理想的です。
IP66防水仕様
防水素材で構築されたこのアウトレットボックスは、雨、雪、ほこりなどの屋外要素から保護し、厳しい条件下でも長持ちし耐久性を保証します。
ETL認証済み
この認証は、アウトレットボックスが厳格なテストを受け、Intertek(世界をリードするテスト、検査、認証会社)によって設定された安全性と性能の基準を満たしていることを保証します。
防水コネクタ
厳しい環境での防水電気接続を作成するための頑丈で効果的なソリューションを提供します。パッケージには、さまざまなケーブルタイプとワイヤーサイズに対応する3個の防水コネクタ(M32 x1、M25 x2)が含まれています。
警告/ 推奨配線
警告:規制と安全上の考慮事項により、この製品は電気システムの作業に訓練され、資格を持つ人員によってのみ設置されるべきです。
推奨配線:
•14mm2 (6 AWG) ワイヤー
•単相3線式、220V
•ブレーカー:50アンペア
オプションを選択
my electrician initially installed one that caused overheating, according to Tesla's support team. I replaced it with this one and have had no issues.
Much better than the cheap one my electrician originally installed
NEMA 14-50 Weatherproof
Power Outlet Box

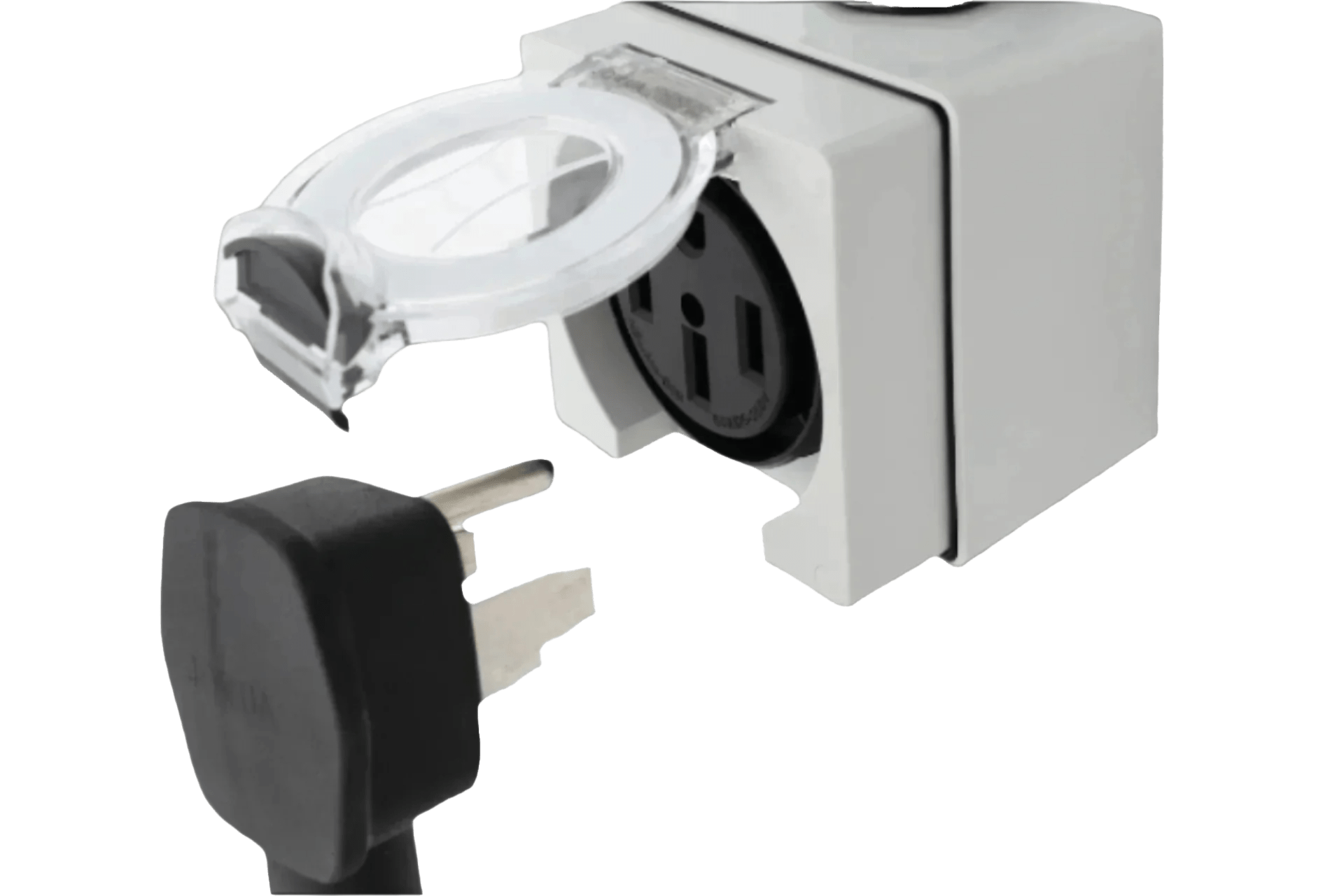

。NEMA 14-50 Receptacle
。12kW (240V/50A) Power Output
。IP66 Weatherproof and Protection
。ETL Listed. Quality and Reliability
NEMA 14-50
12kW(240V/50A)
Power Output
IP66
Weatherproof

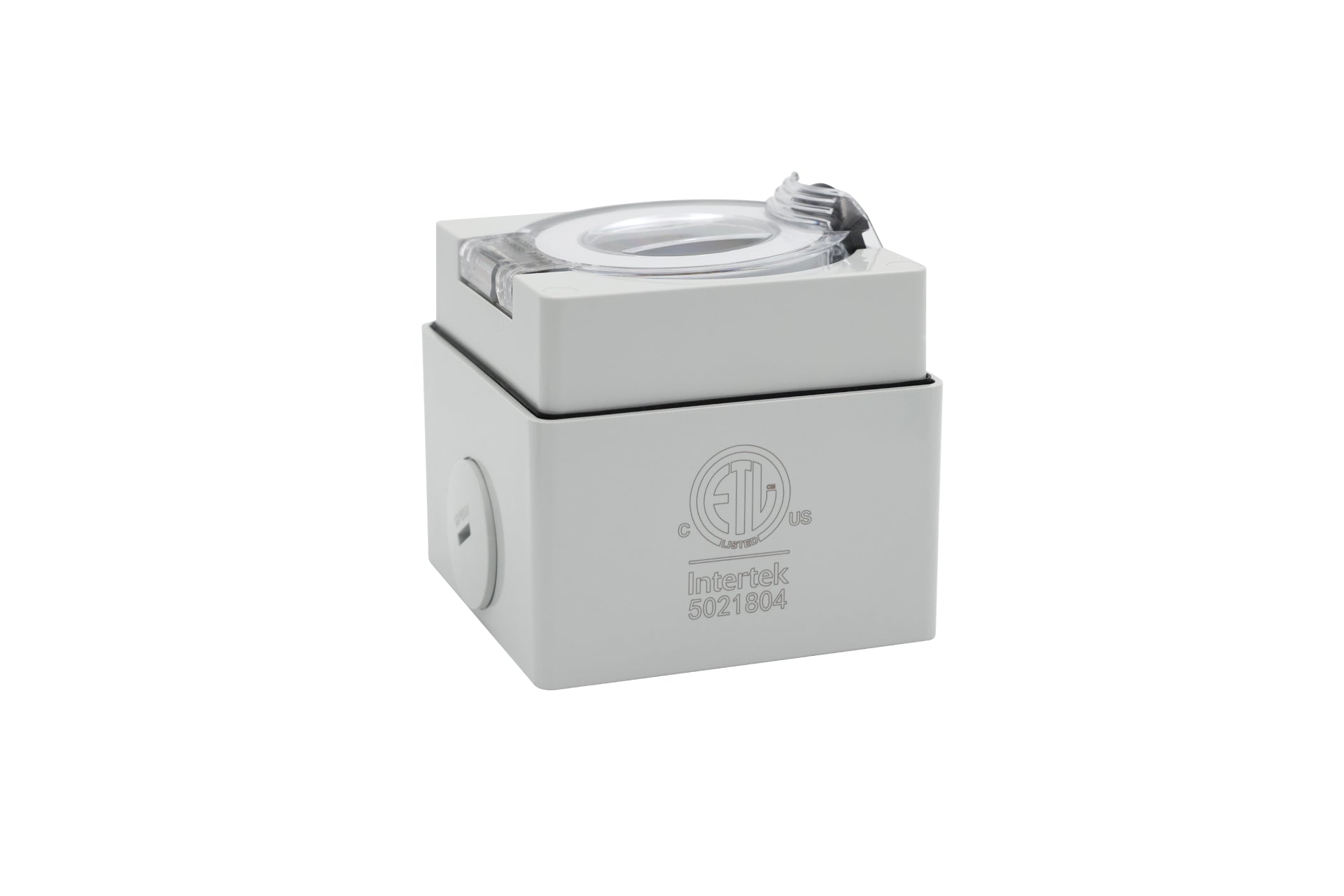

ETL Listed
ETL Certified
Global Recognition for Safety, Quality and Reliability
ETL listed assures the outlet box has beentested
and certified to meet the highest safetyand
performance standards set by Intertek.
Who is Intertek?
Intertek is a leading global provider of quality and safetysolutions.
One of the world's largest and most trustedtesting, inspection,
and certification organizations.
High Quality
Contact Terminals
Ensuring a Secure andReliable Connection
。Corrosion Resistance
。Good Electrical Conductivity & Minimal Energy Loss.
。Low Friction & Better Clamping Force
Full-width
Bronze Contacts
Half-width
Steel Contacts

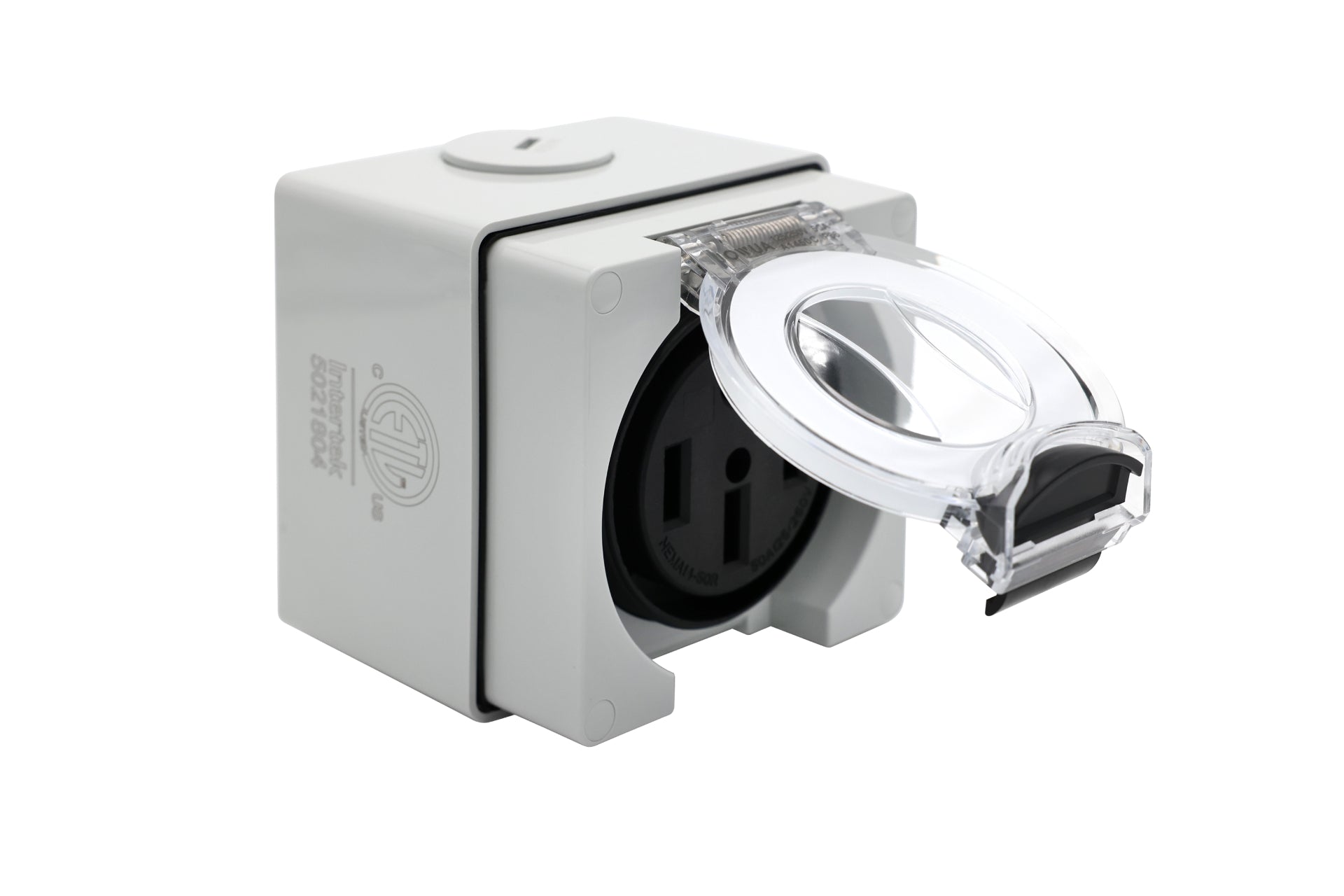

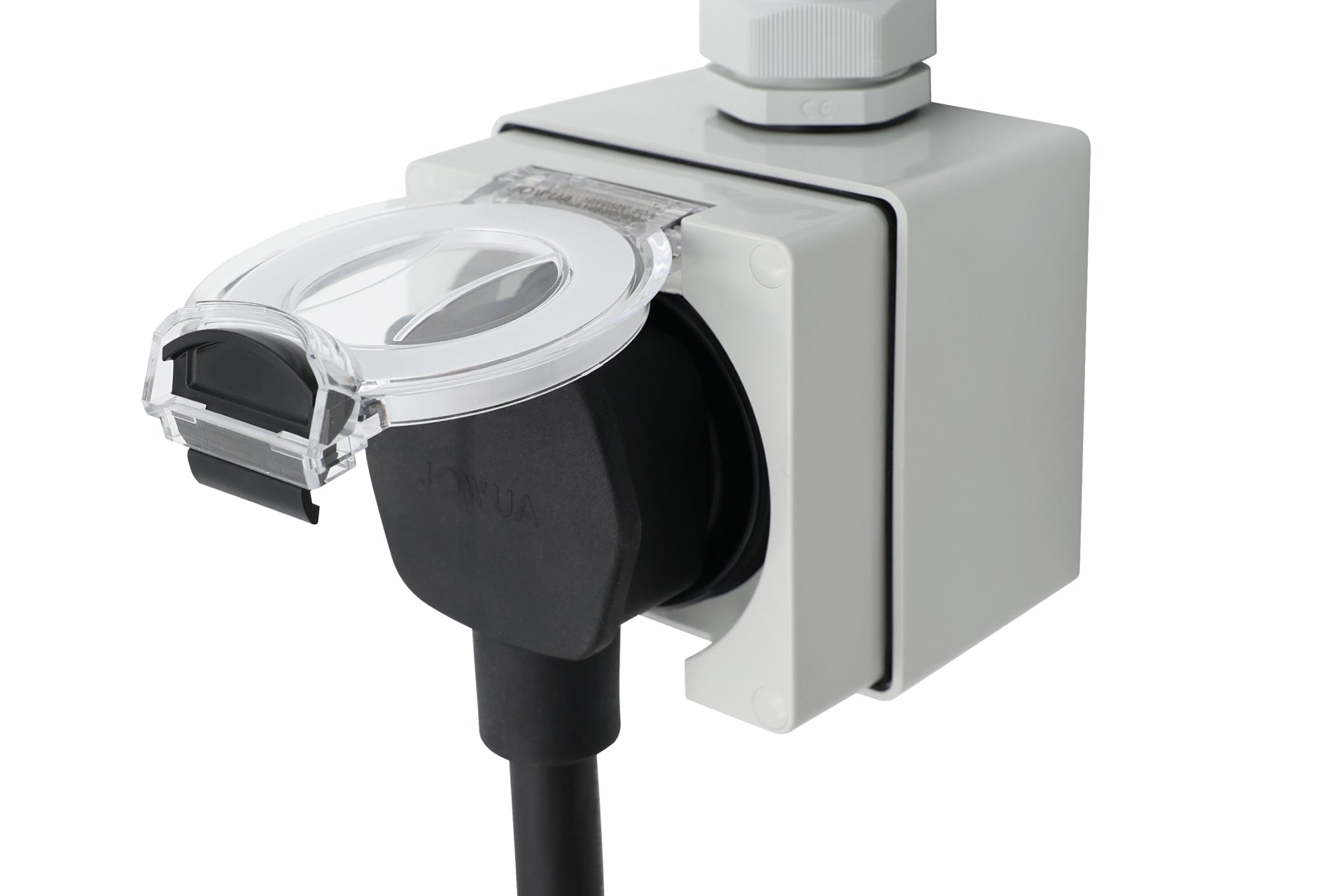

IP66 Weatherproof and Protection
PC Material & Silicone Sealing Ring
Durable construction and effective sealing capabilities.
Cover design ensures reliable connections inenvironments exposed to moisture, dust, or othercontaminants.
Waterproof Connectors
Offer robust and effective solutions for creatingwatertight electrical connections in demandingenvironments.

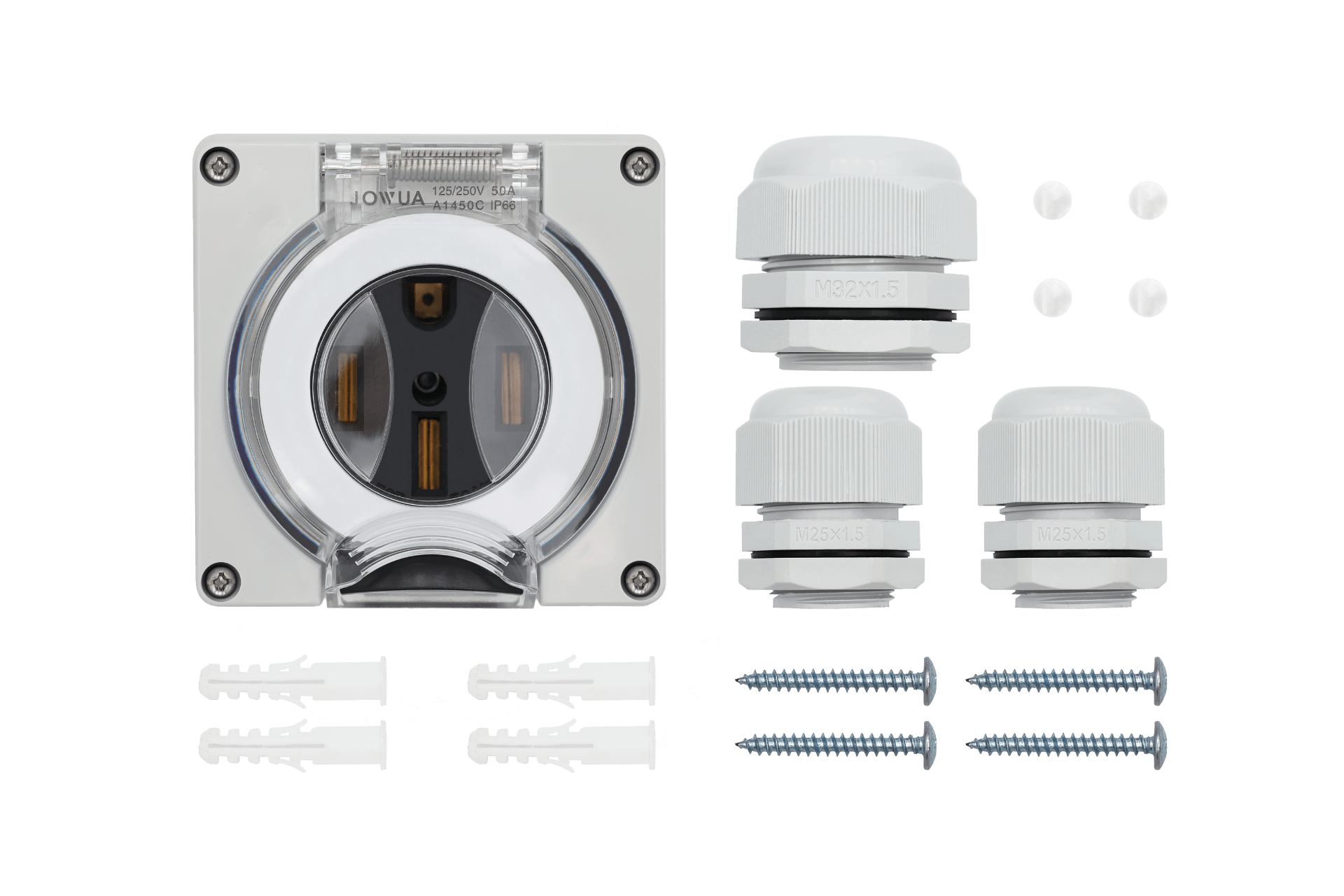

Note: Package includes
3pcs (M32 x1, M25 x2) waterproof connectors.

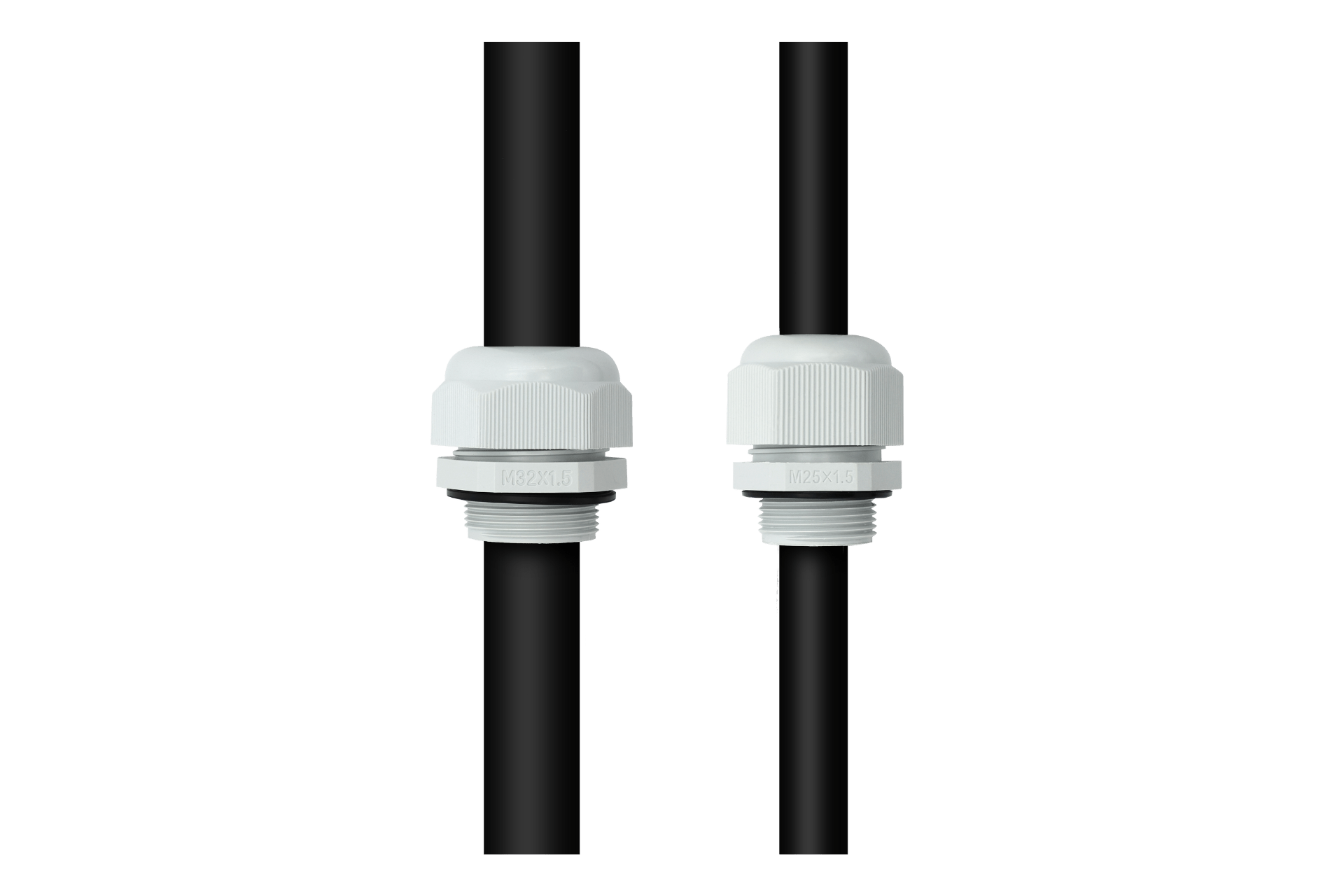

Compatible with Various Cables
Clamping Jaw Design
Compatible with a wide range of cabletypes and wire sizes,
offering flexibilityfor various applications.
M32 (32mm)
Ideal for larger cables and wire
bundles requiring a watertight seal
M25 (25mm)
Suitable for medium-sized
cables and wire bundles
Receptacle Wiring Diagram
G (Green)
“G” identifies the GROUNDING conductor.
Connect to Ground (green) Wir
Y (Gold)
“Y” identifies the HOT LINE conductor.
Connect to Hot (red) wire
X (Gold)
“X” identifies the HOT LINE conductor. Connect to Hot (black) wire
W (Silver)
“W” identifies the NEUTRAL conductor. Connect to Neutral (white) Wire
Recommended Wiring
• 14mm²(6 AWG) wire
• Single phase 3-wire, 220V
• Circuit Breaker: 50 amp

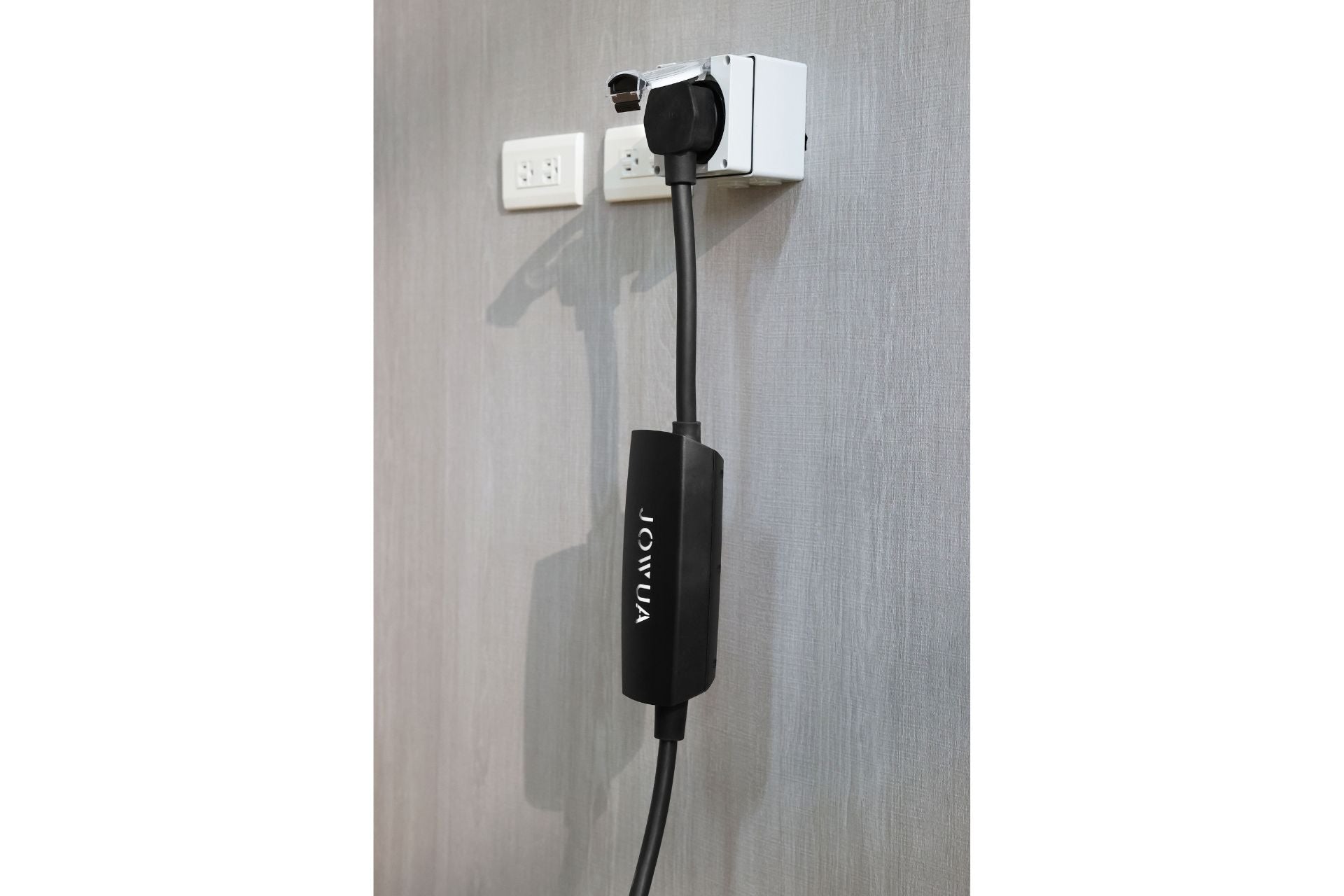

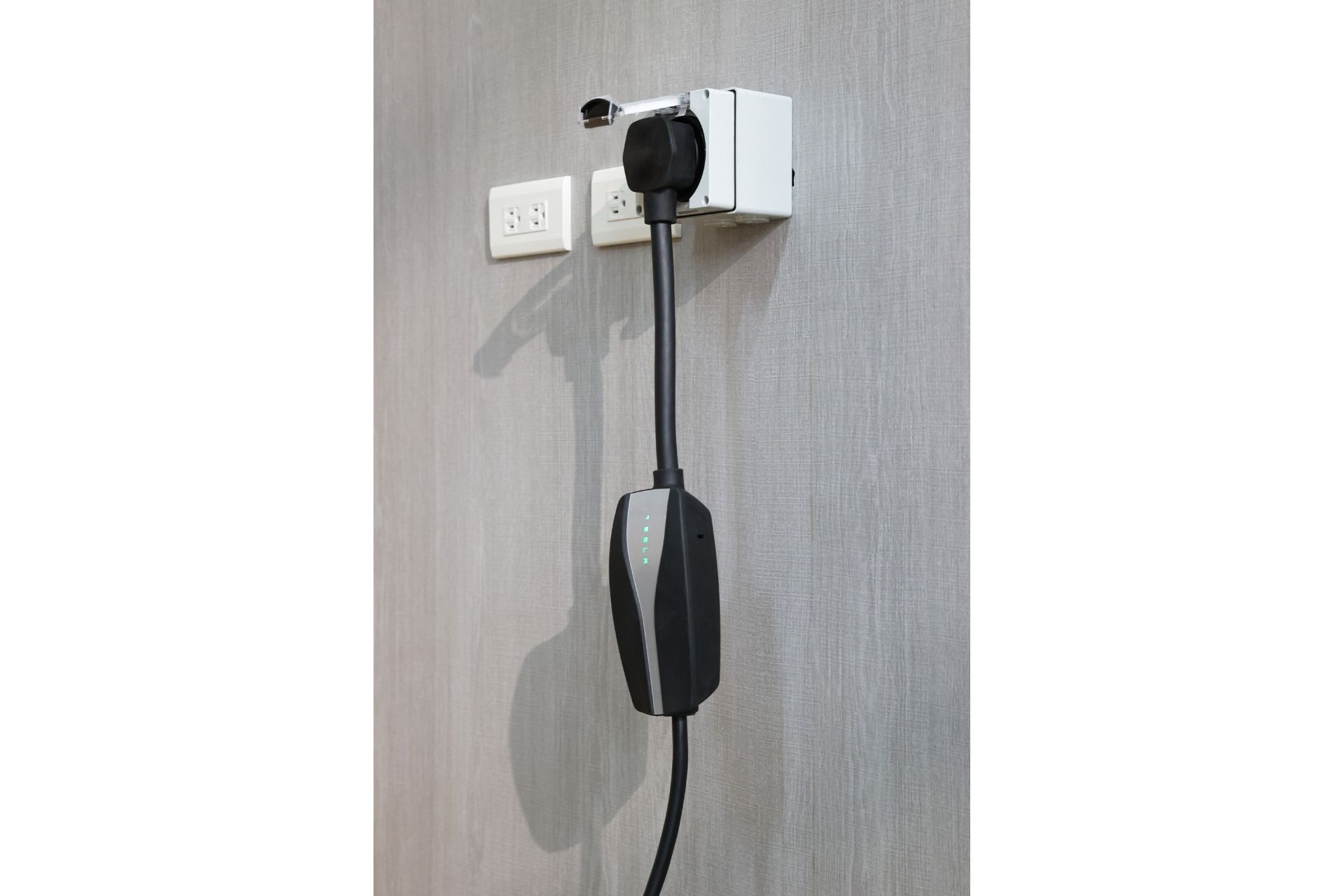

9.6kW (40A) Powerful
NEMA 14-50 Charging Solution
Perfect Match with Jowua
Mobile Connector
Charging Cable Holder
NEMA 14-50 Adapter
